Sculptural Pavilion — Kinetic Light Installation
Overview

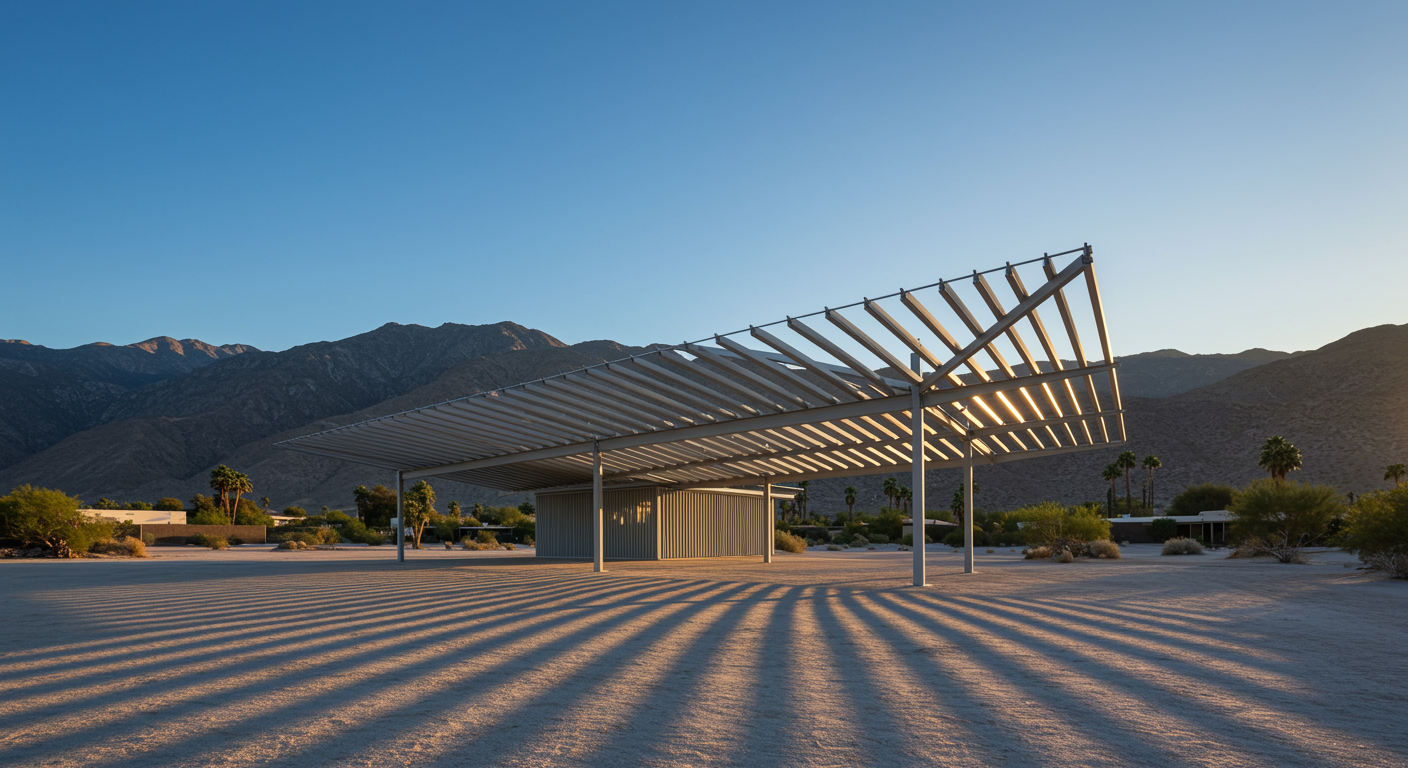

A freestanding sculptural pavilion commissioned for a luxury resort, doubling as an art installation for Desert X programming. CNC-fabricated aluminum shade fins on motorized pivots track the sun throughout the day, casting precise geometric shadow patterns across a 2,400 sq ft ground plane. At night, integrated volumetric lighting transforms the structure into a glowing light sculpture — the same fins that manage desert sun become reflectors for programmed light sequences. The pavilion performs on a 24-hour cycle, never static.
Mandate
Design architecture that performs. A structure that is simultaneously shade pavilion, light sculpture, and kinetic art — functioning differently at every hour of the day. The engineering must be invisible. Visitors should experience a space that feels alive without understanding the systems driving it.
Execution Scope

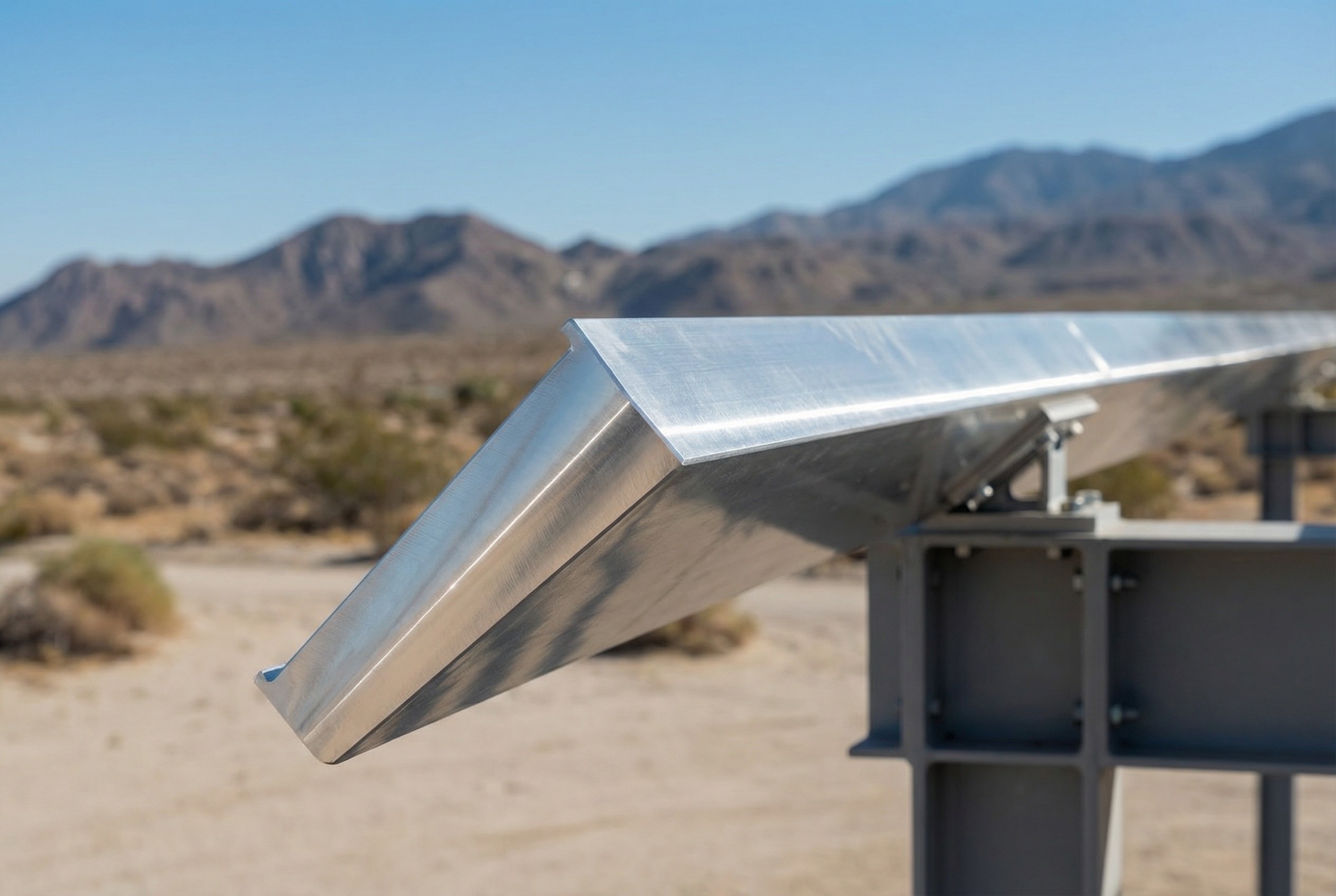

- CNC fabrication of 42 aluminum shade fins — aerospace-grade material, powder-coated reflective finish

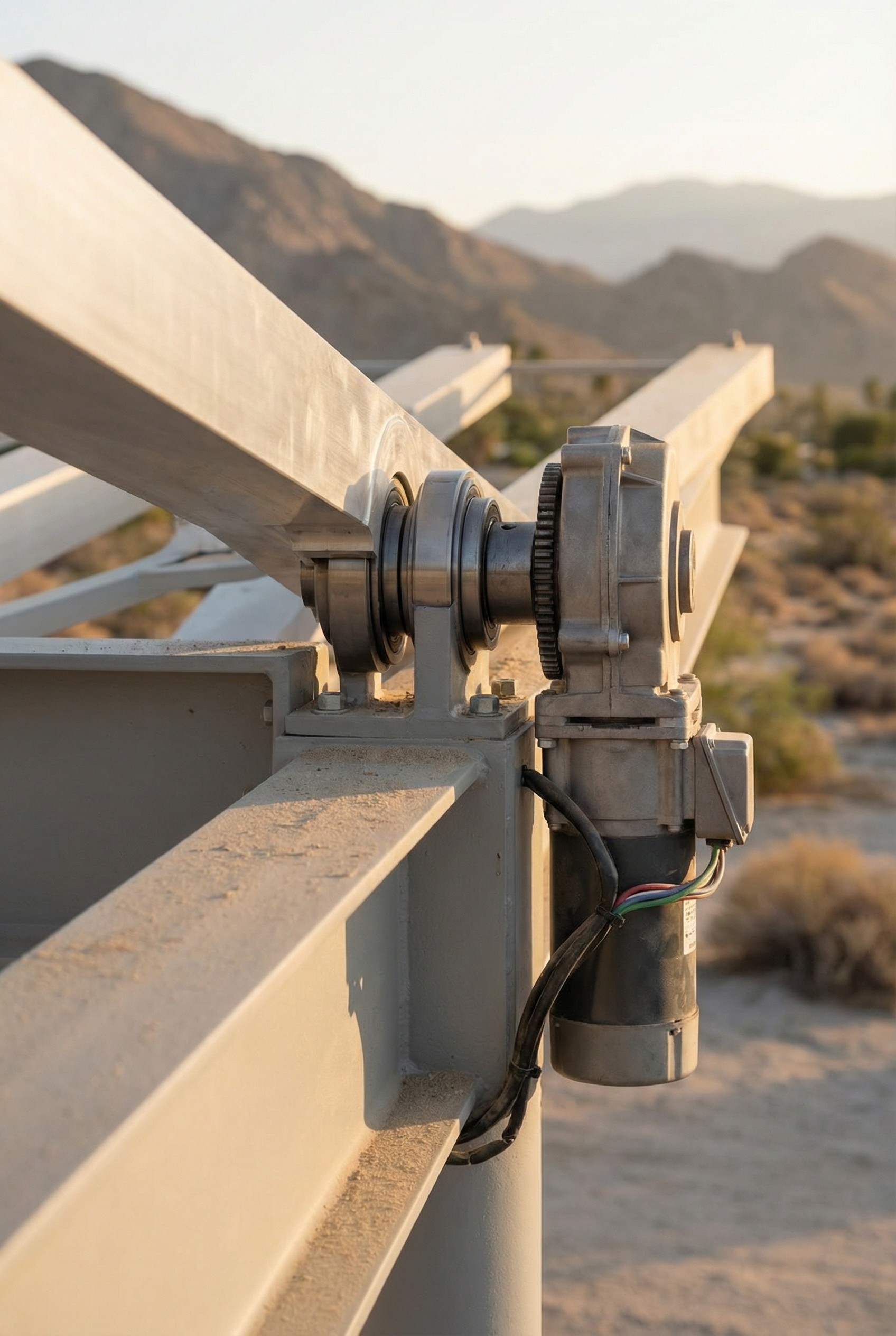

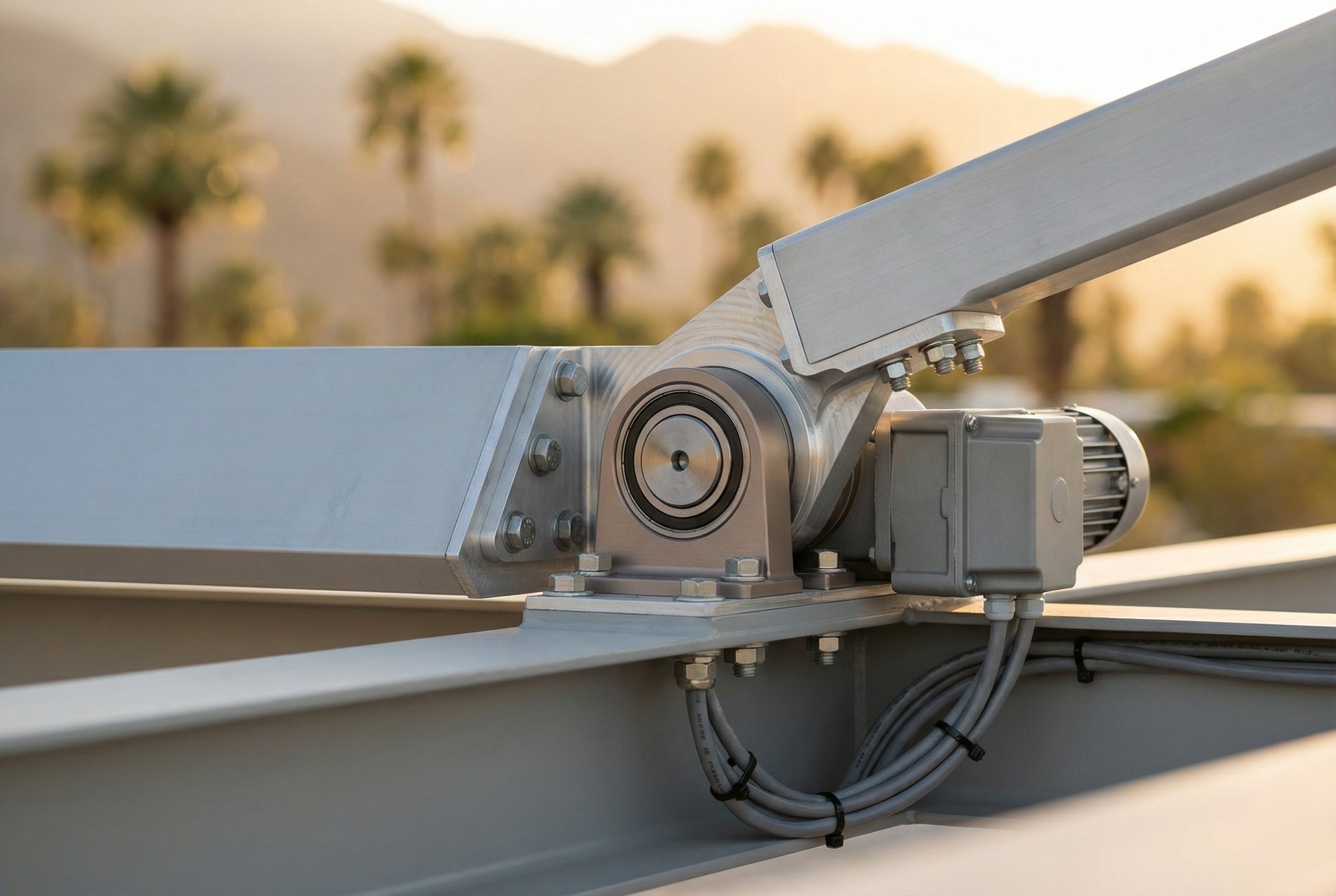

- Motorized pivot system design — each fin independently addressable with solar tracking algorithm
- Solar tracking firmware — real-time sun position calculation driving fin angles for optimal shade geometry

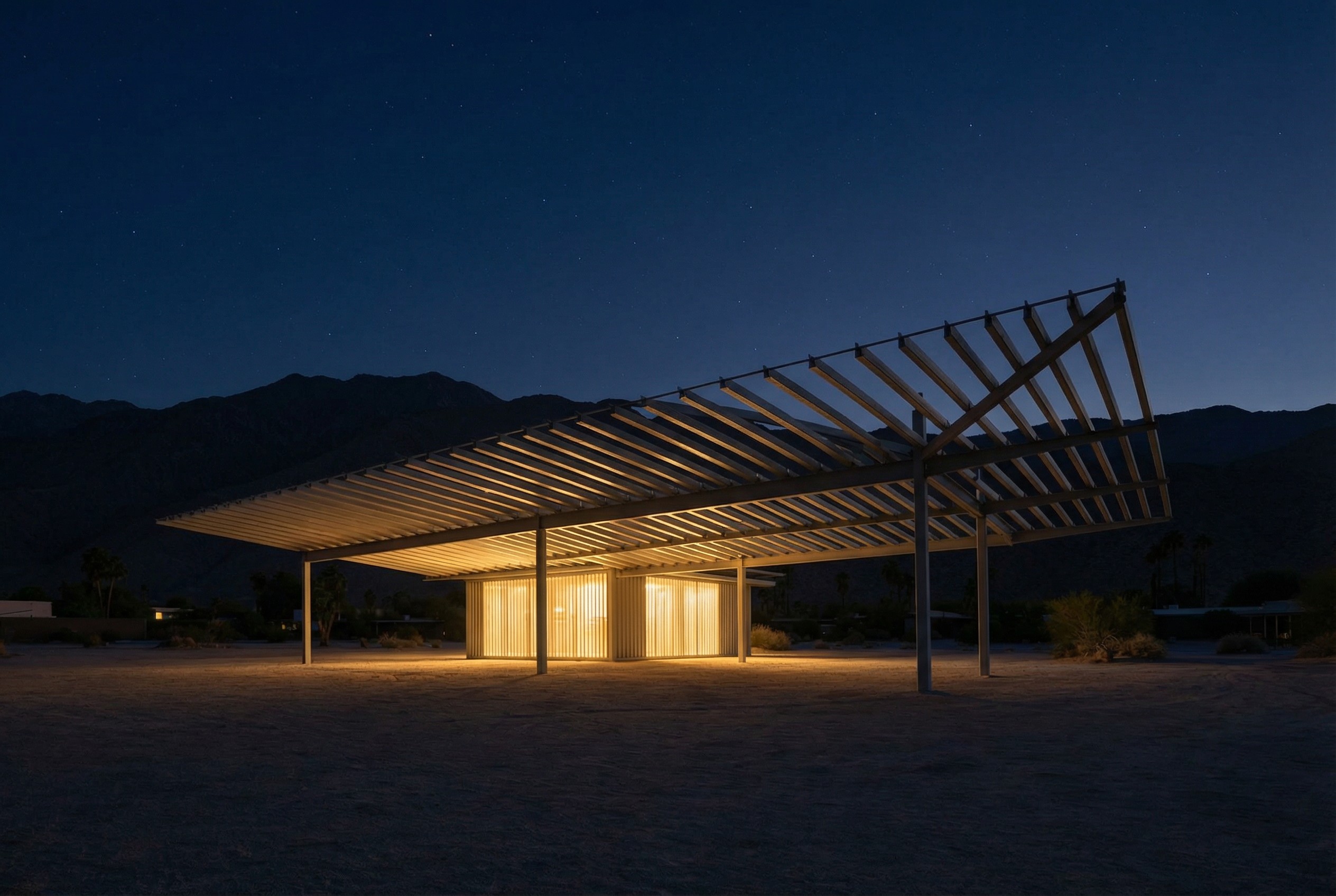

- Volumetric lighting design — 24 fixtures integrated into structural frame for nighttime programming
- Structural engineering for desert wind conditions — 60 mph sustained, 80 mph gusts
- Foundation system for desert soil conditions — engineered footings with thermal expansion tolerance
- Vectorworks 3D model with full-day shadow simulation and nighttime lighting visualization
- Installation coordination with resort operations and Desert X exhibition calendar
Constraints
- Desert thermal cycling — structure must tolerate 60°F daily temperature swings without mechanical stress
- Wind engineering for Palm Springs corridor — sustained 60 mph winds with 80 mph gusts
- Motorized fin systems requiring silent operation — resort guest proximity throughout day and evening
- Solar tracking accuracy within 0.5° — shade geometry must land precisely on designed ground pattern
- Nighttime lighting must not create light pollution visible from adjacent residential areas
- Resort context requiring all maintenance achievable by facilities staff, not specialist technicians
S.I.C. Notes
Systems

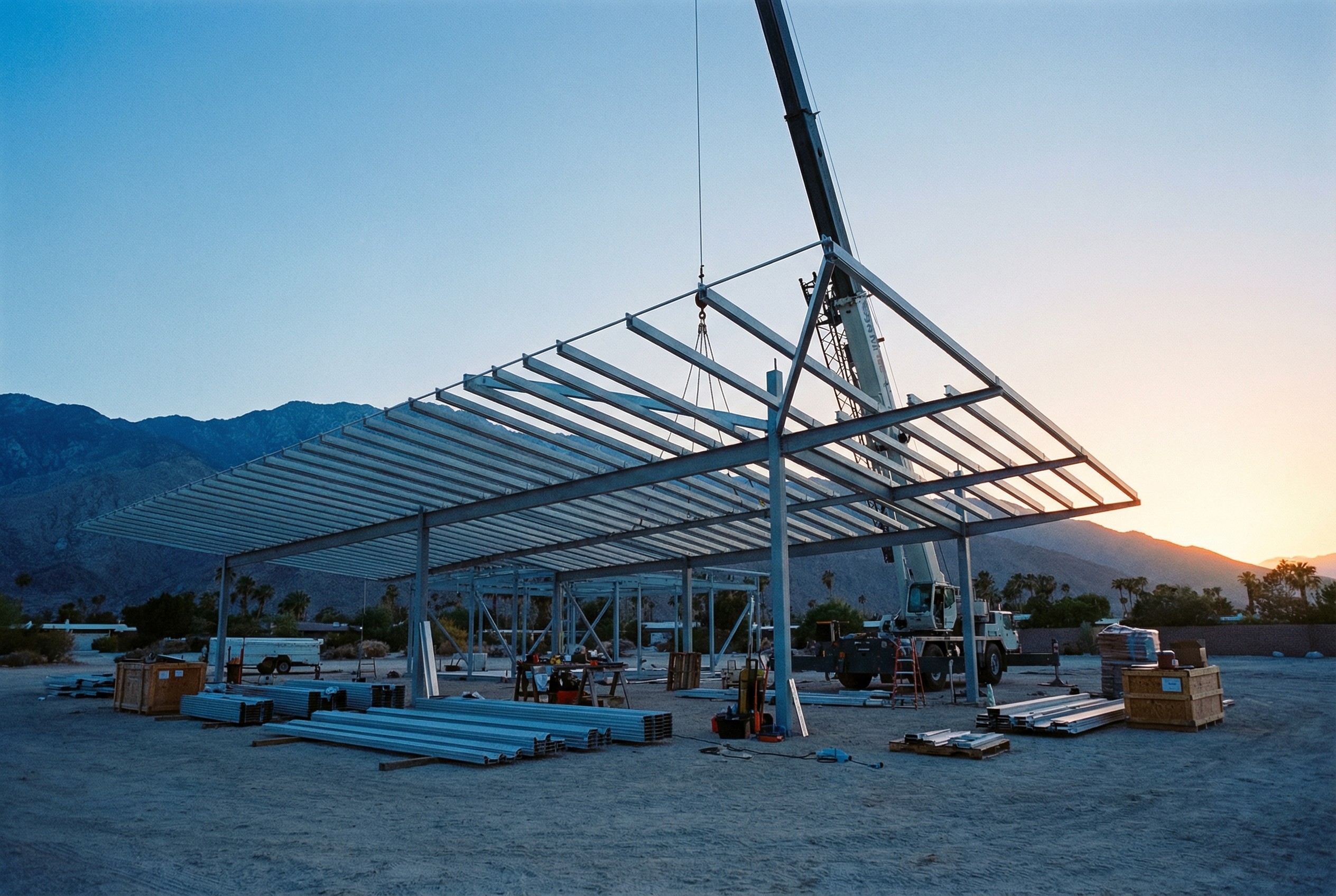

Foundation poured during resort low-season window. Structural frame erected in 3-day sequence. Fins mounted and motorized systems commissioned individually. Solar tracking calibrated over 72-hour observation period.
Intelligence
Site-specific solar angle data modeled for every day of the year. Wind data from Palm Springs weather station analyzed across 10-year record. Desert soil bearing capacity tested at foundation locations.
Control

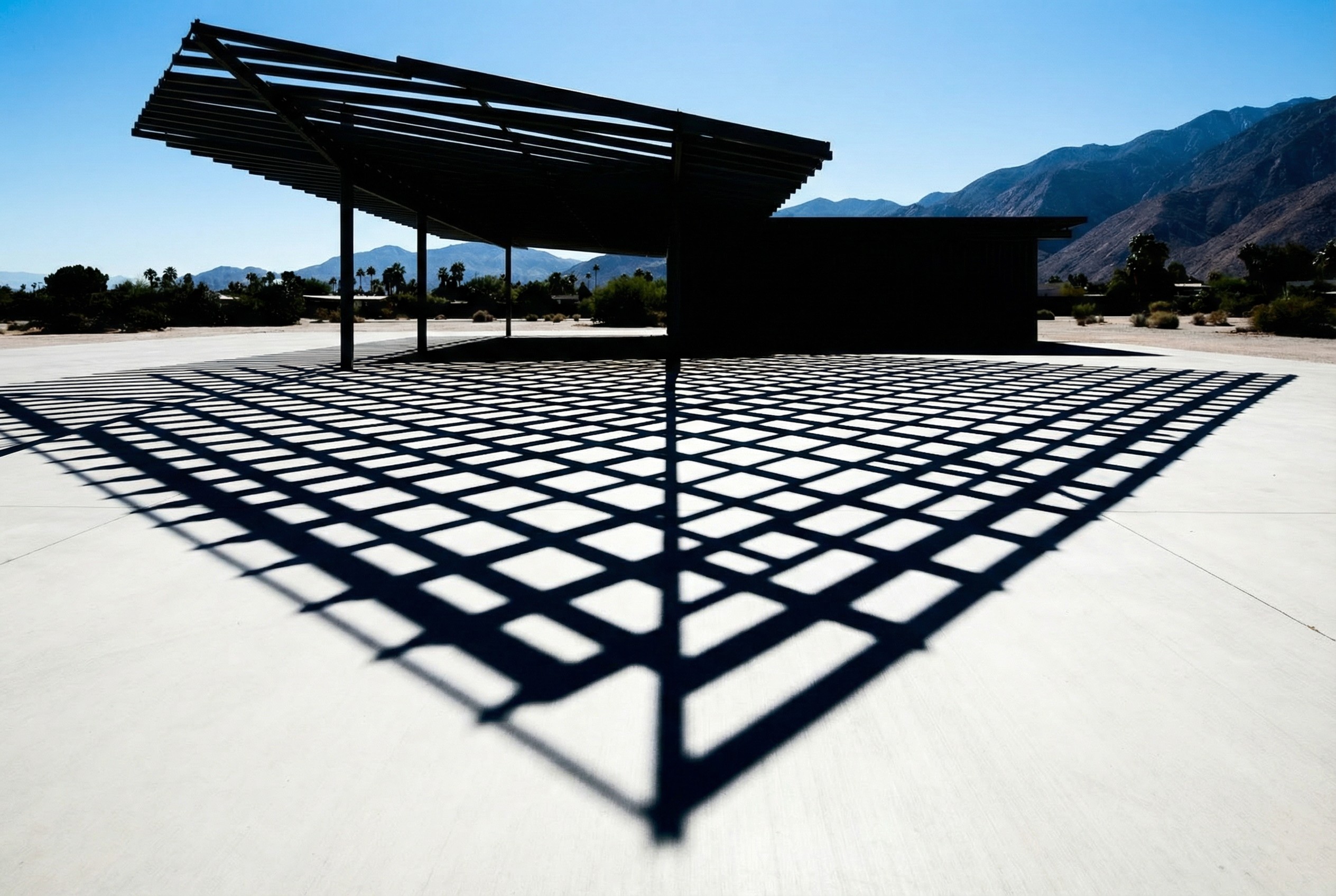

Shadow patterns verified against simulation at four key times of day. Nighttime lighting reviewed from 12 observation points including adjacent properties. Motorized systems stress-tested through 30-day accelerated lifecycle simulation.
Operational Metrics
Outcomes
- Pavilion shade geometry tracking within specification across first full season of operation
- Nighttime light programming became a destination event — resort reported increased evening bookings
- Desert X visitors and critics recognized the installation as a new model for functional kinetic art
- Resort commissioned a second installation for their planned expansion property
